Dynamic Voltage Regulator for Voltage Sag Protection

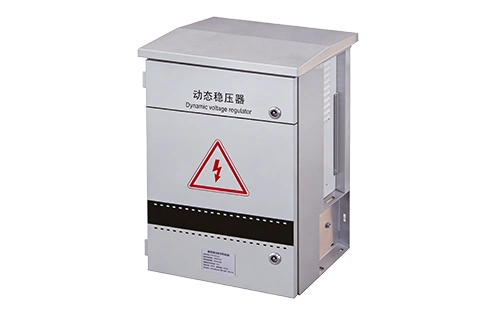

Dynamic Voltage Regulator (DVR) Products

Dynamic Voltage Restorer for Voltage Sag and Swell Protection

Low Loss: Single-stage AC/DC conversion with efficiency up to 98%; bypass loss <0.3%.

High Temperature Resistance: Full load operation at ambient temperature of 50℃.

High Accuracy, Wide Regulation Range: Fully power electronic control; output voltage accuracy

Protection: Fully sealed design; electronic layer IP65, moisture-resistant; easy installation and long-term maintenance-free.

Core Strengths

Dynamic Voltage Restorer (DVR) Millisecond‑level voltage sag protection with 98% efficiency and IP65 rating.

<1ms injection for sag/swell
98% conversion efficiency, <0.3% bypass loss
±1% output voltage accuracy
1/6 size, 1/8 weight of traditional stabilizers
IP65 sealed electronic layer
4G/WiFi for remote monitoring

Certification and Testing

YIDEK DVR is CE and CQC certified, with verified sub‑millisecond response and high efficiency.

Certification: CE, CQC
Testing Report: Response Time Test (<1ms), Efficiency Test (98%), Temperature Rise Test, Overload Capacity Test
Customizable capability: 480V / 690V · 60Hz · IP20 / IP65

Download All Certificates→

Company Capability

Fast Response Validation

Specialized test setup measures sub‑millisecond injection time for every DVR.

Efficiency Mapping

ach unit tested at multiple load points to verify 98% conversion efficiency.

IP65 Sealing Process

Sealed electronic enclosure with proprietary potting and gasket design for harsh environment

FAQ

What voltage issues can the DVR solve?

The DVR effectively mitigates voltage sags, voltage swells, flicker, and three-phase unbalance. It is particularly suitable for protecting sensitive loads such as semiconductor production lines, precision manufacturing, data centers, and medical equipment.

How fast is the DVR response time?

The DVR can detect voltage sags and inject compensating voltage within 1ms, ensuring “zero downtime” for sensitive equipment during grid disturbances.

What is the conversion efficiency of the DVR?

The DVR uses a single-stage AC/AC conversion topology, achieving a conversion efficiency of up to 98% and a bypass loss below 0.3%, offering significant energy savings.

How does the DVR compare to traditional voltage stabilizers in size and weight?

The DVR is only one-sixth the size and one-eighth the weight of traditional voltage stabilizers. Its electronic layer has an IP65 protection rating and can be wall-mounted or embedded in distribution cabinets for flexible and convenient installation.

Does the DVR support remote monitoring?

Yes. The DVR supports wave-free carrier communication as well as wifi and 4G wireless communication, allowing users to view equipment operation status and adjust parameters at any time, enabling intelligent operations.
