Capacitor Bank and PFC Systems for Power Quality

Capacitor Bank & PFC System Products

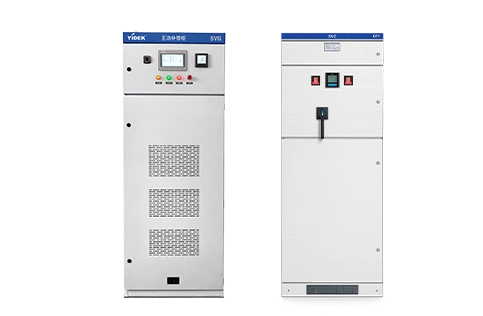

Low-Voltage Integrated Power Quality Management Cabinet

One-stop integrated solution combining capacitors, SVG, and APF to comprehensively address reactive power and harmonic issues.

SPC Three-Phase Unbalance Compensation Device

The three-phase imbalance control device (SPC) adopts power electronics technology. Provide solutions for power quality optimization.

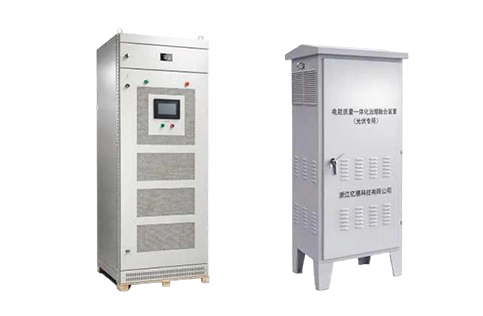

ASVGC Integrated Power Quality Management Device

Dynamic compensation of reactive power, harmonics, and three-phase unbalance.

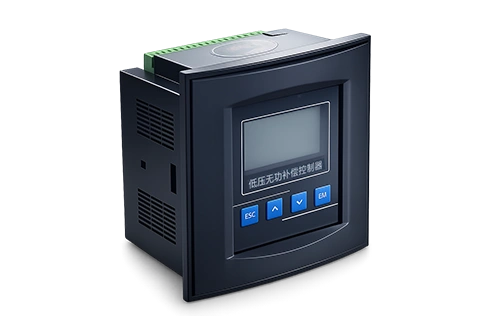

Intelligent Reactive Power Compensation Controller

Suitable for forming tuning filter capacitors and harmonic filters, for power factor correction and harmonic filtering.

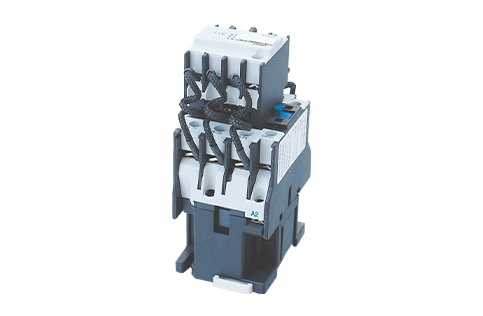

CJ19 Series Capacitor Switching Contactor

Capacitor switching devices are designed for fast and reliable switching of capacitor banks, ensuring stable reactive power compensation under various operating conditions.

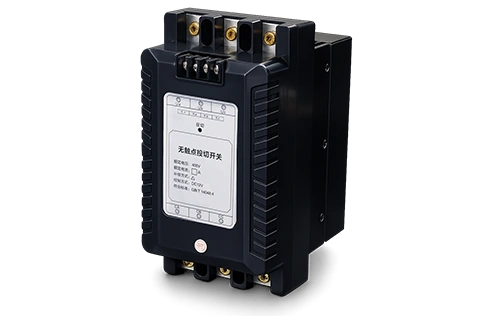

YD-TSCL Series Low Voltage Dynamic Switching Switch

YD-TSCL Low Voltage Dynamic Switch

Capacitor switching devices are designed for fast and reliable switching of capacitor banks, ensuring stable reactive power compensation under various operating conditions.

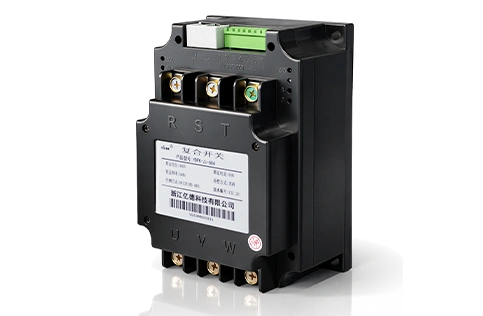

YDFK Series Intelligent Composite Switch

YDFK Compound Switch for Capacitor Banks

Capacitor switching devices are designed for fast and reliable switching of capacitor banks, ensuring stable reactive power compensation under various operating conditions.

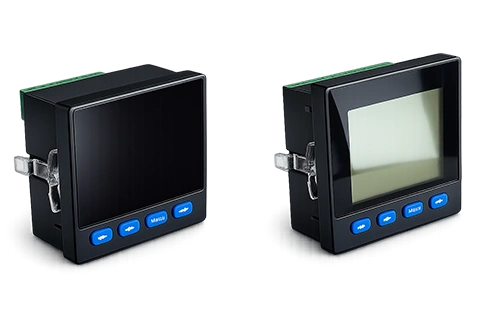

Multifunction Power Meter for Energy and Power Quality Monitoring

Provides solutions for power parameter measurement, power quality monitoring and analysis, and electrical equipment status monitoring and control.

Core Strengths

Plug‑and‑play turnkey systems integrating SVG, APF or capacitor banks for any project.

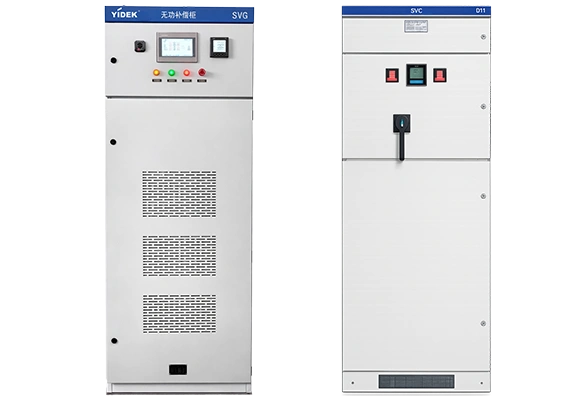

SVG cabinet, APF cabinet, capacitor cabinet
Factory tested, plug‑and‑play
Parallel up to 12 modules for capacity expansion
Custom IP rating for harsh environments
Optional Yidek Cloud IoT monitoring

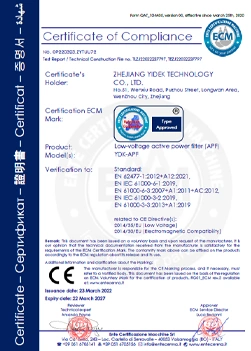

Certification and Testing

YIDEK complete compensation cabinets are fully type‑tested and certified for system‑level performance.

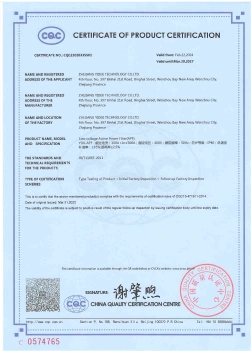

Certification: CQC

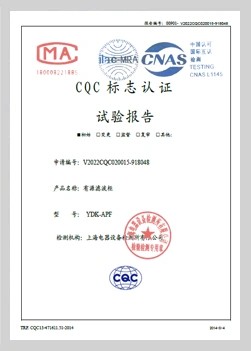

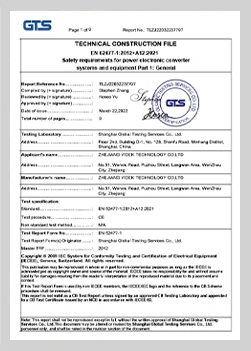

Testing Report: CQC Mark Certification Test, EMC Test (Full Suite), Salt Spray Test (SVG Cabinet), Zhejiang Made Standard Test (APF Cabinet)
Customizable capability: 480V / 690V / 800V · 60Hz · IP20/IP40/IP54

Download All Certificates→

Company Capability

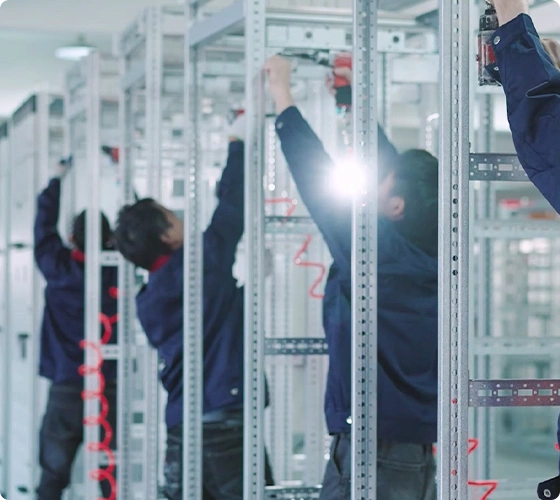

System Integration Center

Dedicated workshop for combining SVG, APF and capacitor banks into turnkey cabinets.

Pre‑Commissioning Protocol

Every cabinet undergoes full‑system function test and communication check before leaving factory.

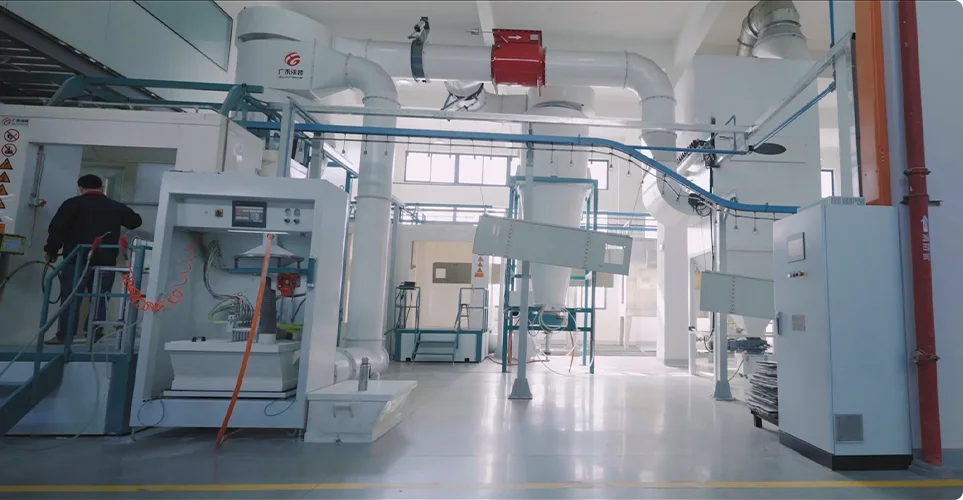

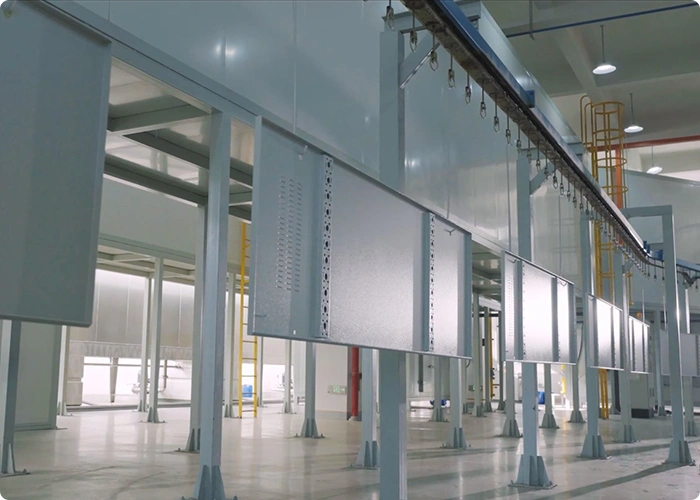

Custom Enclosure Fabrication

In‑house sheet metal shop produces GGD, GCK or custom cabinets with IP20 to IP54 protection.

FAQ

What are the differences between SVG cabinets, APF cabinets, and capacitor compensation cabinets?

SVG cabinets are used for dynamic reactive power compensation and voltage stabilization (millisecond response). APF cabinets are used for harmonic mitigation (2nd-50th order harmonic filtering). Capacitor compensation cabinets are used for power factor correction. Choose a single cabinet type based on the project‘s main issue, or combine them for comprehensive management.

Can the protection rating of the complete cabinet be customized?

Yes. We support custom protection ratings including IP20 (indoor), IP40, and IP54. For harsh outdoor environments such as solar and wind power, high-protection outdoor cabinets can be provided with built-in air conditioning or industrial fans to handle high/low temperatures, salt spray, and dust.

Are complete cabinets tested before shipment?

Yes. Each complete cabinet undergoes full assembly, wiring, debugging, functional testing, and aging verification before shipment, ensuring plug-and-play installation on-site and reducing project timelines.

Can the complete cabinet connect to a cloud platform for remote operations?

Yes. The complete cabinet can be equipped with the Yidek Cloud platform, enabling remote monitoring, fault alerts, data reporting, and other intelligent operations. It supports multi-platform access via PC, mobile App, and WeChat mini-program.

What communication protocols do the complete cabinets support?

They support RS485 and Modbus protocols, with optional wireless communication methods such as 4G/WiFi, facilitating integration into existing monitoring systems or cloud platforms.

Get Your Free Power
Factor Correction Proposal
