Voltage Stability and Regulation Solutions

What Causes Voltage Stability & Regulation Solution?

Voltage Stability & Regulation Solution includes voltage dips (Dip/Sag), voltage swells (Swell), voltage fluctuations, and flicker, as well as three-phase imbalance.
This is typically caused by grid faults, the startup of large motors, the instantaneous draw of impact loads such as arc furnaces, or uneven distribution of single-phase loads.

Free PF Assessment

Tell us your current power factor factor
— we‘ll show you how to fix it

The Hidden Cost of Voltage Stability & Regulation Solution

Production Interruption

Even a voltage dip lasting just a few milliseconds is enough to cause sensitive automated production lines—such as those used in semiconductor manufacturing and precision machining—to shut down, resulting in significant scrap losses and restart costs.

Motor Damage

Prolonged low voltage or three-phase imbalance can lead to a decrease in motor torque and excessive current, accelerating the aging of the motor windings' insulation and even causing them to burn out.

Grid Connection Failure

In new energy systems such as solar and wind power, severe voltage fluctuations can cause inverters to disconnect from the grid, making it impossible to supply power to the grid in a stable manner.

Three-Phase Imbalance Correction

Precise Voltage Regulation

High-Voltage Dynamic Support

Three-Phase Imbalance Correction

Utilizes SPC/ASVGC series devices. For situations at the end of distribution networks or where single-phase loads are overloaded, these devices dynamically adjust the three-phase current balance, effectively reducing transformer losses and eliminating neutral current.

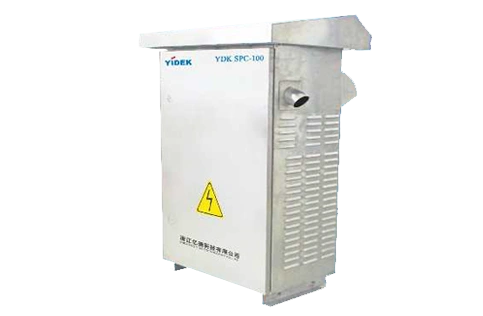

SPC Three-Phase Unbalance Compensation Device

Precise Voltage Regulation

To address voltage sags, we offer dynamic voltage stabilizers (YDK-DVR). These devices inject compensatory voltage at the moment of a fault, providing voltage support within milliseconds to ensure “zero downtime” for precision production lines in industries such as semiconductors and textiles during grid fluctuations.

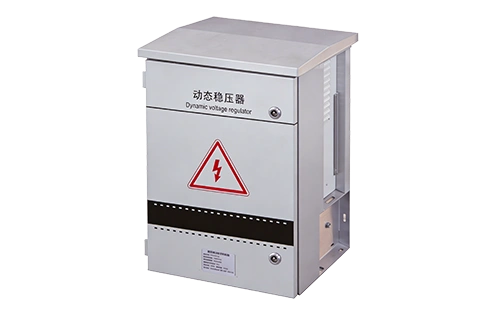

Dynamic Voltage Restorer for Voltage Sag and Swell Protection

High-Voltage Dynamic Support

For heavy industry or grid-end requirements, we provide high-voltage SVGs (YDK-SVGH series) to deliver high-capacity instantaneous voltage support.

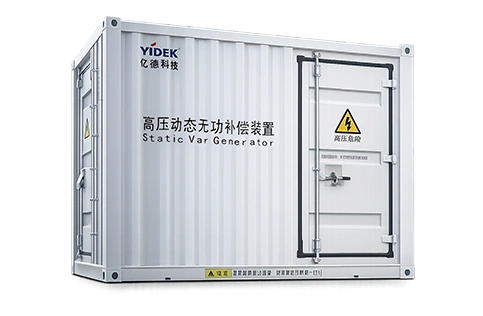

High Voltage Static Var Generator

All core modules undergo 24-hour full load/no-load cycle aging testing to ensure industrial grade stability under complex operating conditions.

Related Cases

Qingshan Group Indonesia Weidabei Industrial Park

Tsingshan Group controls the Indonesian battery cell project of Lanjun New Energy Technology Co., Ltd. in the Weda Bay Industrial Park in Indonesia, which is a key layout of the global nickel industry chain and new energy battery materials. The project is located in Weda Bay, Halmahera Island, Indonesia, and has world-class nickel resources. The project includes 12 pyro-ferro-nickel production lines, a wet-process nickel-cobalt smelting plant, as well as 3 supporting coal-fired power plants and 3 large terminals. After the project is completed, a comprehensive industrial park ranging from laterite nickel ore to nickel intermediate products to new energy battery materials will be built.

Hebei Wenfeng Steel and Aluminum Industrial Parkfa

The Hebei Wenfeng Steel-Aluminum Industrial Park project is invested in and developed by Wenfeng Industrial Group. With a total investment of approximately RMB 35.18 billion and covering an area of nearly 6,000 mu, the project comprises zones for aluminum hydroxide and aluminum-based new materials, aluminum sheet and strip processing, precision aluminum processing, and comprehensive resource utilization.

FAQ

What are the main causes of voltage sags?

Large motor starting, short-circuit faults, lightning strikes, transformer switching, impact loads from arc furnaces or rolling mills. Sags typically last 20-500ms, with remaining voltage dropping to 50-80% of nominal.

How severe is the impact of voltage sags on sensitive equipment?

Even a 50ms sag can trip PLCs, VFDs, CNC machines, servers, etc. A single sag can cost a semiconductor fab $100k-$500k. In continuous processes like textile or plastics, entire batches may be scrapped.

What is the difference between DVR and UPS?

DVR is series-connected and injects compensation only during disturbances, achieving 98% efficiency and compact size. It suits larger sensitive loads (tens to hundreds of kVA). UPS provides full-time battery backup with lower efficiency (≈90-95%), suitable for smaller critical loads (few to tens of kVA).

How does three-phase unbalance affect equipment?

It increases negative-sequence currents in motors, causing overheating, torque reduction, and shortened life. Excessive neutral current may cause fire hazards. Transformer utilization decreases. Unbalance compensators (SPC/ASVGC) can dynamically reduce unbalance to <1%.

How to choose a voltage protection solution?

① Protecting only a few sensitive devices (PLCs, CNCs, MRI) → DVR. ② Overall system voltage fluctuations with reactive power impact → SVG. ③ Severe three-phase unbalance → SPC device. ④ High‑voltage system (6kV-35kV) with flicker → HV SVG. Yidek offers free on‑site measurement and proposal.
