Power Capacitors and Detuned Reactors for PFC

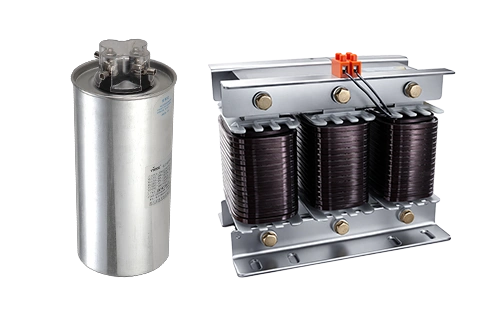

Power Capactior/Reactor Products

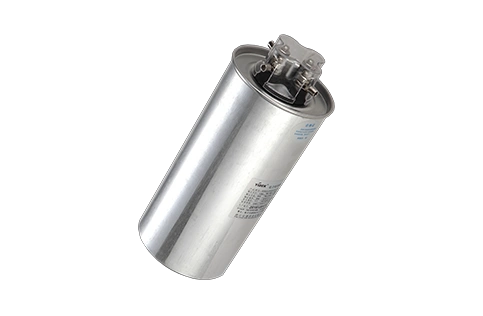

Low Voltage Self-Healing Power

Suitable for forming tuning filter capacitors and harmonic filters, for power factor correction and harmonic filtering.

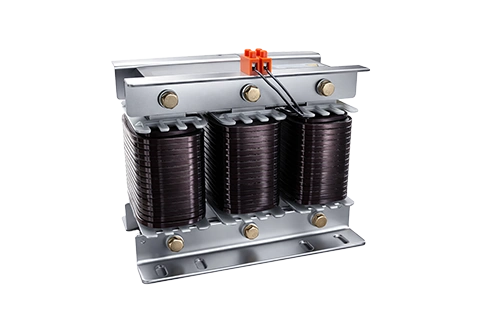

Detuned Series Reactors for Capacitor Banks

Reduce the capacitor surge and limit the influence of harmonics on capacitors and the power system.

Core Strengths

High‑quality passive components with self‑healing technology and long service life.

Self-healing technology
300In inrush current withstand
Low loss ≤0.45W/kvar
7% (5th) / 14% (3rd) reactors
40°C to +55°C operation

Certification and Testing

CE marked, self-healing validated, thermal and sealing tests passed.

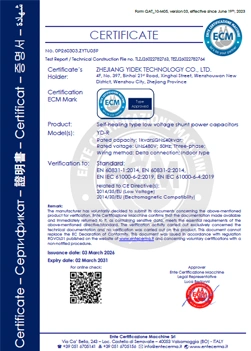

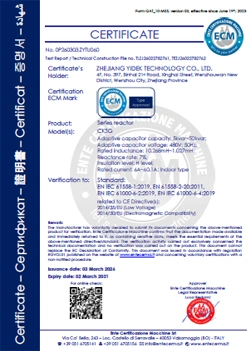

CE certificate

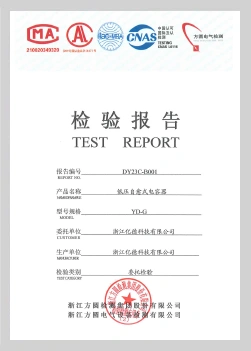

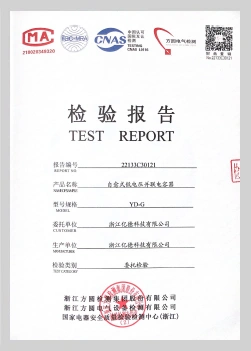

Self-healing test report

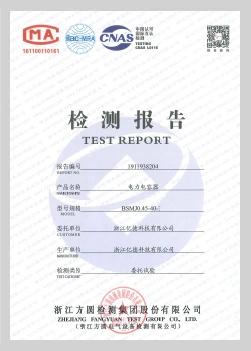

Temperature rise test

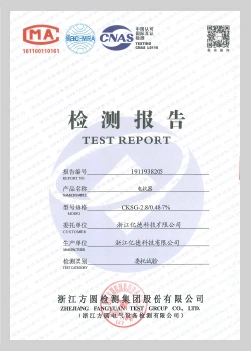

Sealing test

Download All Certificates→

Company Capability

In‑House Winding & Impregnation

Core reactors wound and vacuum‑impregnated on‑site to ensure consistent inductance.

Premium Film Sourcing

Direct procurement of high‑grade polypropylene film from top European/Japanese suppliers.

180,000‑Hour Life Validation

Extended endurance test based on thermal aging models guarantees long service life.

FAQ

What is the difference between self-healing capacitors and traditional capacitors?

When a partial insulation breakdown occurs, self-healing capacitors can automatically restore their insulation performance through a self-healing mechanism without rendering the entire capacitor unusable, greatly extending service life and operational reliability.

How to choose between 7% and 14% detuning reactors?

7% reactors primarily suppress 5th and higher order harmonics (tuning frequency 189Hz), suitable for general industrial environments. 14% reactors primarily suppress 3rd and higher order harmonics (tuning frequency 134Hz), suitable for locations with a large number of single-phase loads such as LED lighting and computers.

What is the main function of a series reactor?

It suppresses capacitor switching inrush current, prevents harmonic amplification, and protects the capacitor from harmonic damage. Input reactors suppress grid surges and harmonic feedback, while output reactors reduce dv/dt, protecting motor insulation and extending transmission distance.

Why do capacitors leak?

The internal dielectric medium is in a molten state during operation. Leakage may occur when the seal is poor or when the sealing compound ages due to prolonged heat exposure. It is recommended to choose products with superior sealing technology and perform regular inspections.

What is the designed service life of the capacitor?

The capacitor uses high-quality polypropylene film and dry-type self-healing technology, with a designed service life of up to 180,000 hours (temperature class -40°C), ensuring long-term stable operation.

Get Your Free Power
Factor Correction Proposal
