Name: Low-Voltage Integrated Power Quality Management Cabinet
Brand: YIDEK
SKU: 00011
Rating: 4.9 (56 reviews)

Low-Voltage Integrated Power Quality Management Cabinet

Low-Voltage Integrated Power Quality Management Cabinet

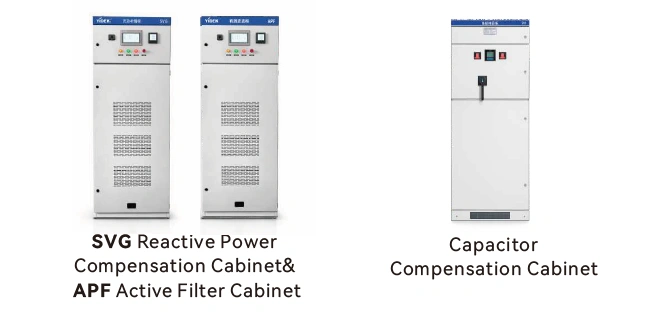

One-stop integrated solution combining capacitors, SVG, and APF to comprehensively address reactive power and harmonic issues.

Get in touch→

Modular Design: Independent, compact power units for easy installation and maintenance. Ratings: 100~400kvar (reactive) and 30~150A (harmonic). Parallel operation: one unit fails, others keep running – high reliability.
PF = 1 Correction: Compensates both capacitive and inductive reactive power with continuous output, error <1%.
Harmonic Filtering: Filters 2nd–50th harmonics from nonlinear loads, improving power quality and equipment safety.
Unbalance Compensation: Corrects three-phase unbalance and excessive neutral current.
Fast & Reliable: Proprietary tech: 80kHz switching, 6kHz current loop bandwidth, response <10ms.
Flexible Use: Mix and match units: parallel for capacity expansion, reactive+harmonic combined, or passive phase-shifter to avoid resonance.
Easy Install & Maintain: Supports grid/load side CT sampling. Rack-mounted units, clear HMI alarms, and modular swap of faulty units.

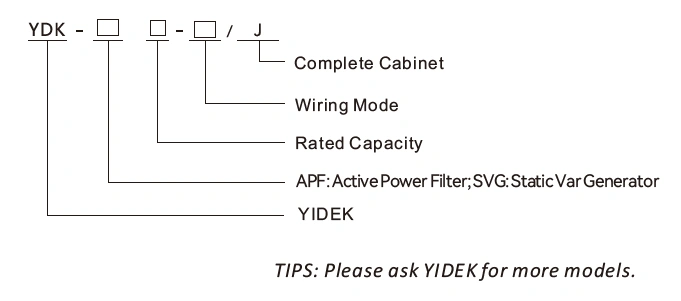

Order specifications

Specifications Low-Voltage Integrated Power Quality Management Cabinet

Reactive Power Compensation	100/150/200/250/300/350/400 kvar
Harmonic Management Unit	30/50/75/100/150A

Input

Operating Voltage	400V/690V (-20%~+15%)
Operating Frequency	50Hz (-10%~+10%)
Current Transformer	1~100 times of the device's rated value

Functions

Compensable Harmonics	2nd~50th order
Harmonic Filtering Rate	>97%
Reactive Power Compensation	Compensate inductive & capacitivereactive power simultaneously, power factor corrected to 0.98
Three-phase Unbalance Compensation	100% full compensation

Communication Low-Voltage Integrated Power Quality Management Cabinet

Communication Protocol	Modbus
Interface	RS485, Ethernet port
Host Computer Support	All parameters are configurable via the host computer software
Fault Alarm	Up to 500 alarm records
Monitoring	Independent module monitoring & centralized whole-unit monitoring

Technical Specifications Low-Voltage Integrated Power Quality Management Cabinet

Full Response Time	<5ms
Active Power Loss	<2.5%
Cooling Mode	Intelligent forced air cooling
Noise	<60dB
Switching/Control Frequency	200kHz
Equivalent Switching Frequency	80kHz
Current Loop Cut-off Frequency	6.4kHz
Protection Functions	Over-voltage, under-voltage, over-temperature,
CT Mounting Position	over-current, short circuit, and 20+ other protections
	Load side/source side optional
Max Parallel Units	Unlimited

Environmental Requirements Low-Voltage Integrated Power Quality Management Cabinet

Operating Temperature	-10℃~+45℃
Altitude	<1500m (capacity derated by 1% per100m increase)
Relative Humidity	<99%
Protection Degree	IP20 (higher grade customizable)
