SVG - Static Var Generator

Dynamically and continuously compensates reactive power, stabilizes system voltage, and improves power quality by generating or absorbing reactive current in real time via power electronic devices.

Get in touch→

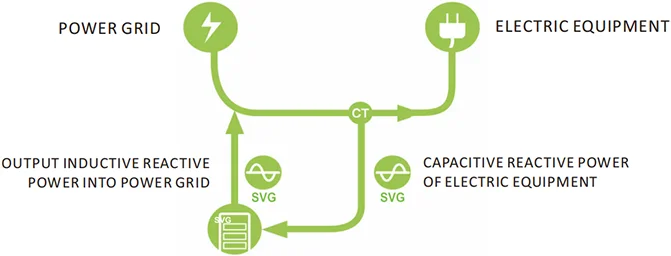

Core Function: Primarily reactive power compensation. It acts as a controlled current source capable of instantaneously absorbing or injecting reactive power (either inductive or capacitive) in response to grid demands.
Ancillary Functions: Possesses a certain degree of harmonic mitigation capability (typically to a limited extent).
Technical Features: Characterized by extremely rapid response speeds (within 5 ms), the ability to achieve continuous reactive power regulation ranging from capacitive to inductive, and immunity to grid voltage fluctuations.

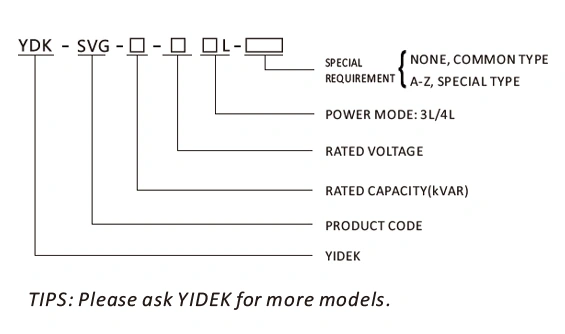

Order specifications

Specifications SVG - Static Var Generator

Product Series	V8 Series
Module Rating	30/50/75/100/150 kvar
Module Dimensions (W×H×D)	500×200×530 mm
Max. Parallel Units	12 units

Input

Operating Voltage	380V（±20%）
Operating Frequency	50Hz/60Hz（±10%）
Current Transformer Ratio	50:5 ~ 30000:5

Functions

Harmonic Compensation	2nd-13th order (50% of rated current)
Harmonic Filtering Rate	Meets or exceeds JB/T11067-2011 standard
Reactive Power Compensation	Adjustable -1 to +1 (within unit capacity)
Three-Phase Unbalance Compensation	100% unbalance fully compensated

Communication SVG - Static Var Generator

Protocol	RS485, Modbus
Interface	RS485, CAN
PC Communication	Supported; all parameters configurable via PC
Fault Alarm	Yes, up to 500 alarms logged
Monitoring	Supports individual module or whole system monitoring

Technical Specifications SVG - Static Var Generator

Full Response Time	≤5ms
Active Power Loss	≤3%
Cooling	Intelligent air cooling
Noise	≤50dB
Protection Functions	Overvoltage, undervoltage, overtemperature, overcurrent, short circuit, etc. (20+ types)
CT Installation Position	Load side or grid side

Mechanical Characteristics SVG - Static Var Generator

Module Weight	30Kg (150K/200A) 23.5Kg (100K/150A) 19.5Kg (100A)
Color	White RAL7035

Environmental Requirements SVG - Static Var Generator

Operating Temperature	-10℃~+50℃
Altitude	<5000 m (derate 1% per 100 m above 1000 m)
Relative Humidity	<95%, non-condensing
Protection Rating	IP20 (module)
Pollution Degree	Class 2 (Class 3 available upon request)

Related Resources	Download
YIDEK product brochure	Download
Computer Software Certificate - Embedded software for a static reactive power generator	Download
CE - YDK-SVG-50	Download
CE - TCF-YDK-SVG-50	Download
CE - YDK-SVG-100	Download
CE - TCF-YDK-SVG-100	Download
CQC - YDK-SVG	Download
Test Report - YDK-SVG CQC	Download
Test Report - DK-SVG	Download
