Name: Intelligent Reactive Power Compensation Controller
Brand: YIDEK
SKU: 00017
Rating: 4.9 (59 reviews)

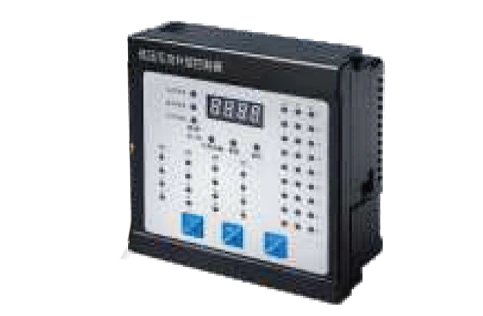

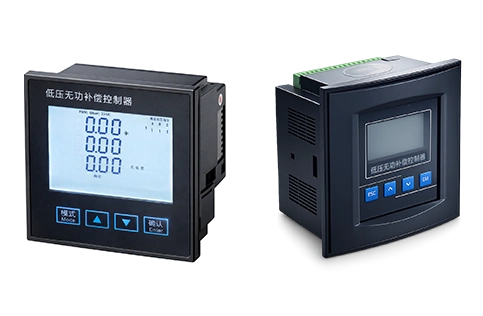

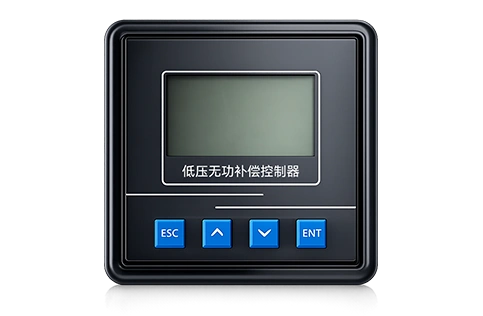

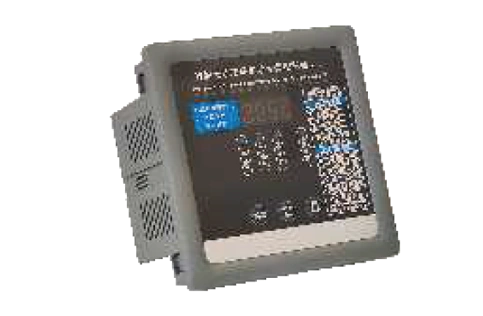

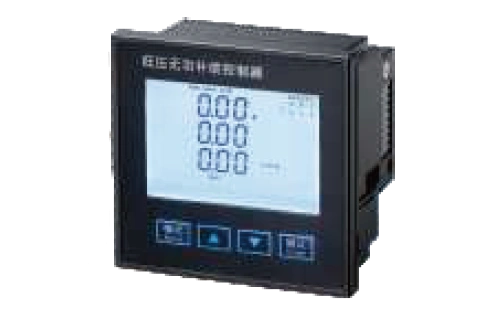

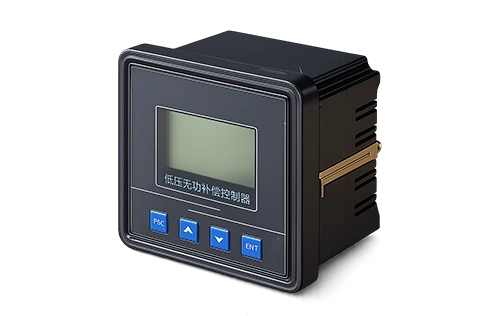

Intelligent Reactive Power Compensation Controller

Intelligent Reactive Power Compensation Controller

Suitable for forming tuning filter capacitors and harmonic filters, for power factor correction and harmonic filtering.

Get in touch→

DISPLAY: LCD display; Diagram&Word; Intelligent control; self-optimizing control; Button start; Auto initialization; Record data callback; Alarm output
EXTENDED FUNCTION: System volt; Active & Reactive power; Frequency; THDu & THDi; Real-time power factor; Power factor aim; Reactive vacancy; Temperature
OUTPUT: 3-Phase compensation; Split compensation; Dynamic PF control; (SCR control signal)
ALARM OUTPUT: Under-Compensation; Over-Compensation; Under-Current; Over-Current; Over-Temperature; Harmonic Out-of-Limit; Self-checking fault

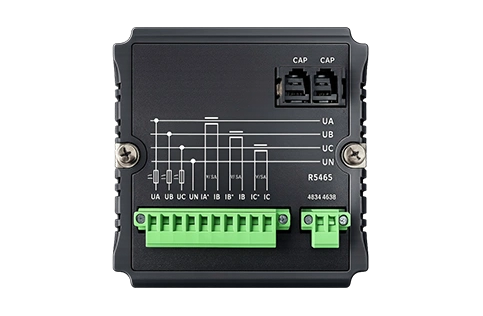

Communication: RS485 Terminal; Modbus Protocol

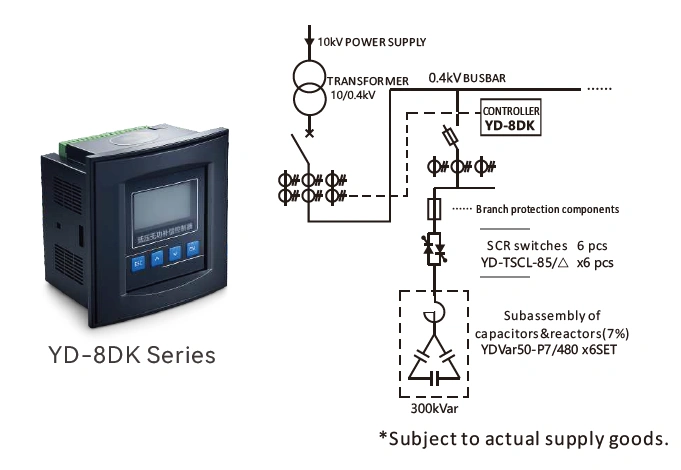

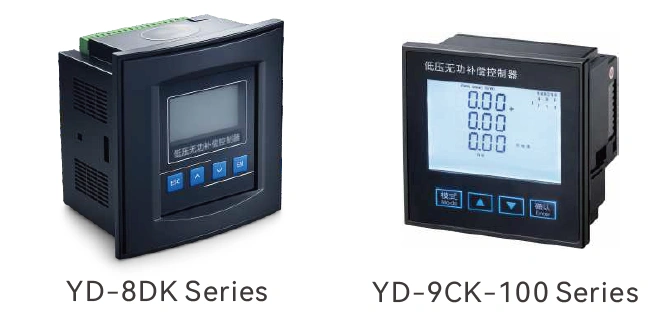

YD-8DK Series Technical Parameter Intelligent Reactive Power Compensation Controller

Rated work voltage	230/400V
Rated frequency	50/60Hz
Power dissipation	<3VA
Environment TEMP	-20℃~60℃
Altitude	≤2500 meters
IP degree	IP30, panel IP40
Standard	JBT9663
Display	LCD display with image
Control output	relay or SCR
Alarm/Signal output	1 delay output
Communication	RS485, Modbus Protocol
	*Subject to actual supply of goods.

YD-8DK Series Order Specification Intelligent Reactive Power Compensation Controller

MODEL	SPECIFICATION
YD-8DKLS-24	Dynamic, DC12V/AC 220V control, 24 circuits, 3-phase compensation
YD-8DKLF-24	Dynamic, DC12V /AC 220V control, 24 circuits, mixed compensation

YD-9CK-100 Series Technical Parameter Intelligent Reactive Power Compensation Controller

Measurement Accuracy
Voltage	±0.5%
Current	±1%
Power Factor	±1.5%
Reactive Power	±2%
Temperature	±1℃
Power Supply
Rated Volt	400V±20% Can be customized
Power Loss	≤3W
Communication Mode
Control	RS485 Communication, work with an intelligent capacitor
Environment Condition
Relative Humidity	20%~90% No Condensation
Environment TEMP	-25℃~70℃
Altitude	≤2000m
Others	The installation place does not allow explosive media. Surrounding medium should not contain gases or conductive media that corrode metals or damage insulation. It is not allowed to be filled with water vapor, and severe molds appear. The installation place shall have facilities to protect against rain, snow, wind, sand, and ash.
	*Subject to actual supply of goods.

YD-9CK-100 Order Specification Intelligent Reactive Power Compensation Controller

This kind of power factor controller can only be used with YD series intelligent capacitors
MODEL	SPECIFICATION
YD-9CKZ	≤30 sets of three-phase intelligent capacitors
YD-9CKH	≤10 sets of split intelligent capacitors, Total number ≤30 sets
	TIPS: Please ask YIDEK for more.

Related Resources	Download
YIDEK product brochure	Download
Yide YD-9CK Low Voltage Reactive Power Compensation Controller Embedded Software V1.0	Download
CQC - YD-9CK	Download
CQC report - YD-9CK	Download
Utility Model Patent - Intelligent Hybrid Compensation Low-Voltage Reactive Power Compensation Controller	Download
