Name: SPC Three-Phase Unbalance Compensation Device
Brand: YIDEK
SKU: 00010
Rating: 4.9 (55 reviews)

SPC Three-Phase Unbalance Compensation Device

The three-phase imbalance control device (SPC) adopts power electronics technology. Provide solutions for power quality optimization.

Get in touch→

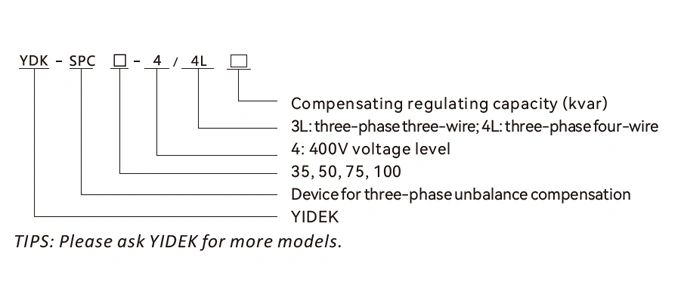

Order specifications

Specifications

Parameter	35 /50/75/100
Rated voltage	380V/400V
Phase voltage range	20%
Grid frequency	50Hz/60Hz (45~63Hz)
Efficiency	>97%
Network configuration	3P3W /3P4W

Performance

Topology	3-level
Unbalance compensation	Unbalance <5%
Rated current	50A/100A/150A
Reactive power range	-1to +1 adjustable
Reactive power capacity	35kvar/50kvar/75kvar
Reactive power compensation rate	>99%
Response time	<10ms
Protection	Overvoltage, undervoltage, short circuit, overcompensation, dual surge protection

Technical Specifications

Distribution	Two-circuit power distribution with Class C surge protection
Standard	Built-in WiFi module
Display	Real-time data: voltage, current, frequency, PF, temperature, etc.
Interface	Ethernet port
Protocol	Modbus/Telecom protocol

Mechanical Characteristics

Dimensions (W×H)	700×1140 mm
Color	Stainless steel natural
Weight	58kg/72kg/115kg
Mounting	Outdoor floor/pole mount (H-pole, F-pole)

Environmental Requirements

Tilt angle	<5°
Operating temp.	-10℃ to +45℃
Altitude	Derate above 1500m per IEC/TR60146-1-2:2011
IP rating	IP44
Seismic resistance	Magnitude 8
