Name: YD-TSCL Low Voltage Dynamic Switch
Brand: YIDEK
SKU: 00013
Rating: 4.9 (57 reviews)

YD-TSCL Low Voltage Dynamic Switch

Get in touch→

Order specifications

Principle: A thyristor and a latching relay are operated in parallel.

Features: It combines the advantages of both components. The thyristor enables "zero-crossing switching" (eliminating inrush current), while the relay takes over the connection after switching (resulting in no power consumption and minimal heat generation). This is currently the most widely used balancing scheme in low-voltage capacitor compensation cabinets.

Technical Parameter YD-TSCL Low Voltage Dynamic Switch

Voltage	400V 690V
Output rating	2~50kvar
Trigger signal	10~24VDC, internal insulation
Switching time	Less than 20ms
Control characteristics	Switching the capacitor branch at zero crossing without inrush current.
	*Subject to actual supply of goods.

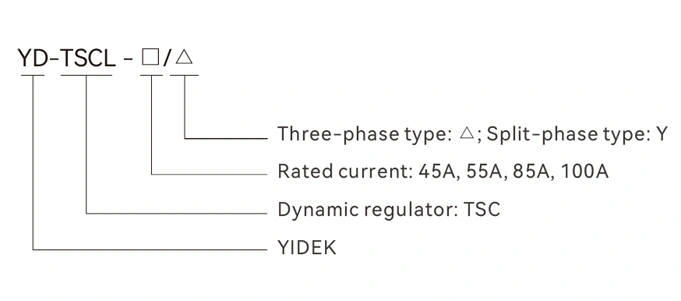

Order Specification YD-TSCL Low Voltage Dynamic Switch

MODEL	MAX CAPACITY
YD-TSCL-45/△	25kvar
YD-TSCL-60/△	30kvar
YD-TSCL-85/△	40kvar
YD-TSCL-85/△	50kvar
YD-TSCL-45/Y	10kvar×3
YD-TSCL-45/Y	15kvar×3
YD-TSCL-45/Y	20kvar×3
YD-TSCG-60/△	40kvar
YD-TSCG-100/△	50kvar
YD-TSCG-100/△	60kvar
RATED VOLT	CONTROL MODE
400V	3-Phase Com
400V	3-Phase Com
400V	3-Phase Com
400V	3-Phase Com
400V	3-Phase Com
400V	3-Phase Com
400V	3-Phase Com
690V	3-Phase Com
690V	3-Phase Com
690V	3-Phase Com
	TIPS: Please ask YIDEK for more capacitor models.
