Name: High-Voltage Shunt Capacitor Installation
Brand: YIDEK
SKU: 00008
Rating: 4.9 (54 reviews)

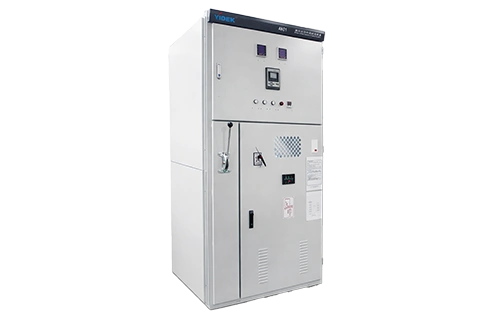

High-Voltage Shunt Capacitor Installation

High-Voltage Shunt Capacitor Installation

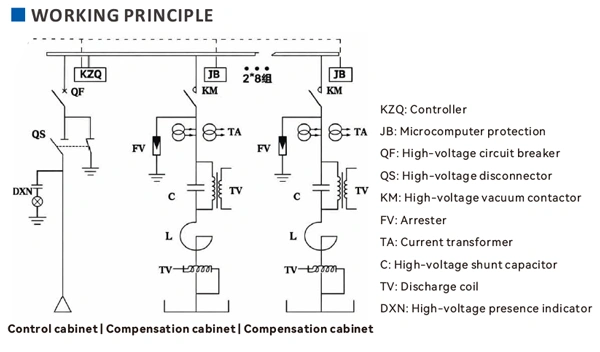

Connected directly in parallel to the power system, supplying capacitive reactive power to compensate inductive reactive power, improve power factor, and stabilize system voltage.

Get in touch→

Reliable switching devices: Use non-restriking, non-bouncing vacuum contactors, vacuum circuit breakers, or SF₆ circuit breakers for automatic capacitor bank switching.
Automatic tracking compensation: The control system detects, evaluates, and tracks to achieve a preset power factor, optimizing voltage and power factor.

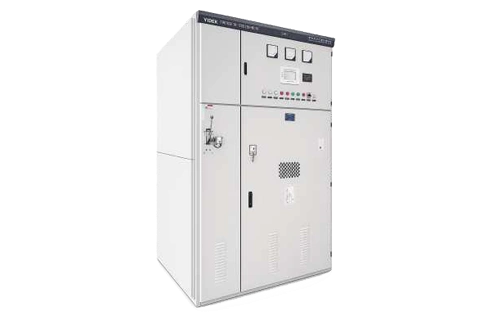

Modular cabinet construction: Step-switched automatic compensation devices consist of multiple cabinets made of cold-rolled steel (bent, welded, powder-coated) or aluzinc steel (bent, assembled). Max IP40 protection.
Integrated three-phase design: Dry-type iron-core reactor coils available in aluminum (default) or copper (specify if copper needed).
Overcurrent protection: Step-switched compensation devices can be equipped with CTs for two-stage overcurrent protection of capacitor banks.

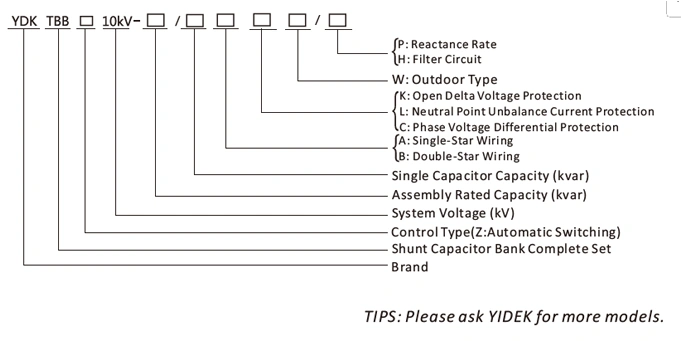

Order specifications

Operating Environment

Site Altitude	<1000m
Ambient Temperature	-40～+45℃
Relative Humidity	<85% (at 20±5 ℃)
Inclination of the installation surface	≤5 degrees
• Installation site shall be free from severe vibration, harmful gases/vapors, and conductive/explosive dust particles.
• Indoor installations require adequate ventilation.
• The switching device for this assembly utilizes high-quality vacuum circuit breakers or vacuum contactors.
• The upstream system should be equipped with over-voltage, under-voltage, over-current, and short-circuit relay protection.

Technical Characteristics

Capacitance Tolerance	-3% ~ +5%. Deviation between series segments < 1%. Phase-to-phase deviation < 3%.
Operating Voltage	Capable of continuous operation under 1.10 Un power-frequency steady-state voltage. Under this condition, the peak value including all harmonic components shall be ≤ 1.2 Un.
Current Rating	Permitted current up to 1.43In
Capacitor Protection	Utilizes both internal and external fuse protection.
Switching Logic	Cyclic switching of capacitor banks (first-on, last-off sequence) with configurable switching delays.
Vacuum Contactor	Features include frequent operation capability, fast bounce-free closing/opening, low re-ignition rate during interruption, reliable operation, minimal maintenance, and long service life.

Related Resources	Download
YIDEK product brochure	Download
Test Report - YDKTBBZ High-voltage complete set of equipment inspection report	Download
Test Report - High Voltage Parallel Capacitor Inspection Report	Download
Test Report - High Voltage Reactor Inspection Report	Download
