Name: High Voltage Static Var Generator
Brand: YIDEK
SKU: 00005
Rating: 4.9 (53 reviews)

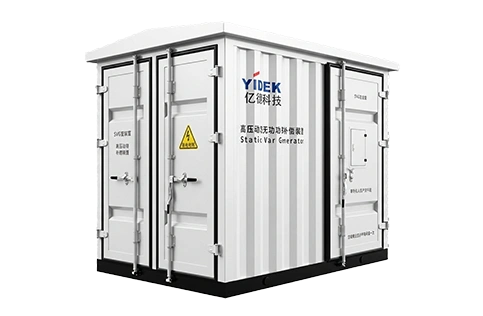

High Voltage Static Var Generator

The YDK-SVGH High-Voltage SVG offers the optimal solution for dynamic reactive power compensation.

Get in touch→

Improve transmission line stability
Maintain receiving-end voltage and enhance system voltage stability
Compensate system reactive power, improve power factor, reduce line losses, and save energy
Suppress voltage fluctuation and flicker
Suppress three-phase unbalance

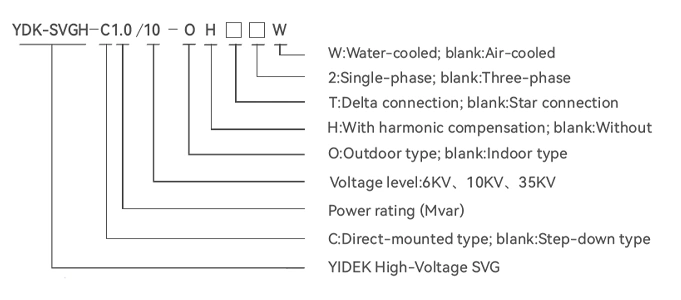

Order specifications

Examples:

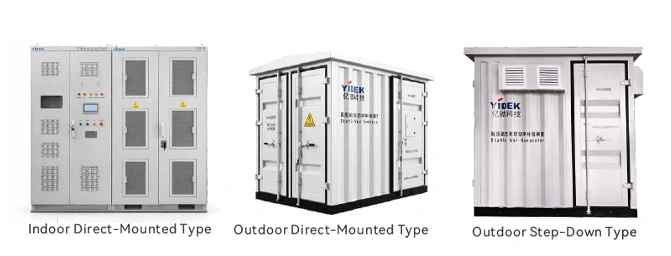

YDK-SVGH-C1.0/10-O: 10KV, 1Mvar, direct-mounted, outdoor, air-cooled, with harmonic compensation, including prefabricated container.

YDK-SVGH-C3.0/35-OW: 35KV, 3Mvar, direct-mounted, outdoor, water-cooled, with harmonic compensation, including prefabricated container.

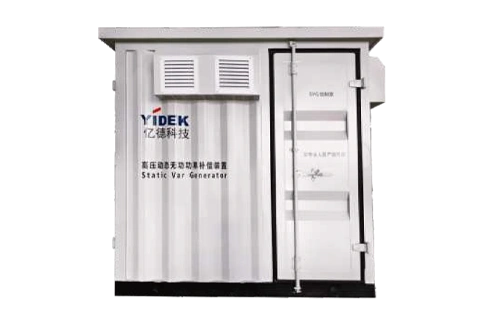

YDK-SVGH-0.5/10-O: 10KV, 0.5Mvar, step-down, outdoor, air-cooled, with harmonic compensation, including prefabricated container.

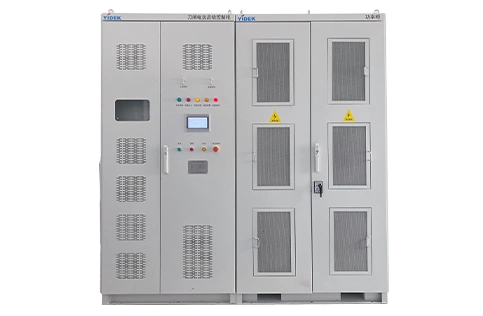

YDK-SVGH-0.5/10: 10KV, 0.5Mvar, step-down, indoor, air-cooled, with harmonic compensation.

TIPS: Please ask YIDEK for more models.

Specification

Specification	3KV/6KV/10KV/35KV
Rated Capacity	±1Mvar～±100Mvar
System Voltage	3kV、6kV、10kV、35kV
Frequency	50Hz

Functions

Reactive Power Compensation	Power factor correction, continuously adjustable from -1.0 to +1.0
Three-Phase Unbalance Compensation	100% unbalance, fully adjustable
Harmonic Compensation	Up to the 13th order, filtering efficiency >70%
Response Time	≤5ms
Power Loss	≤0.8%
Cooling Method	Intelligent Air Cooling /Water Cooling
Total Harmonic Current Distortion (THDi)	≤3%
Control Power Supply	380VAC,220VAC，or 220VDC
Reactive Power Regulation Mode	Automatic, continuous, and smooth adjustment (Capacitive/Inductive)
Minimum Compensation Power	5kvar
Compensation Current Resolution	0.5A

Monitoring & Communication

Communication Interfaces	Ethernet, RS485, CAN, High-speed Fiber Optic
Communication Protocols	MODBUS_RTU, ProfiBUS, Power CDT91, IEC 61850-103/104, CANOPEN, User-defined
Parallel Operation	Supports multi-unit parallel operation and multi-busbar comprehensive compensation

Environmental Requirements

Operating Temperature	-10℃~+40℃
Altitude	≤20o0m (Special design required for >2000m)
Relative Humidity	Monthly average ≤90% (at 25℃), non-condensing
Ingress Protection (IP) Rating	Ip40 (Indoor), IP44 (Outdoor)

Related Resources	Download
YIDEK product brochure	Download
Test Report - Type Report of High Voltage Dynamic Reactive Power Compensation Device	Download
