Name: Detuned Series Reactors for Capacitor Banks
Brand: YIDEK
SKU: 00015
Rating: 4.9 (58 reviews)

How to Select a Detuned Reactor

Confirm system voltage and frequency.
Confirm the matched capacitor voltage and kvar rating.
Select three-phase or single-phase construction.
Review the measured harmonic spectrum.
Select a suitable reactance rate, such as 7% or 14%.
Confirm tuning frequency, inductance and installation conditions.

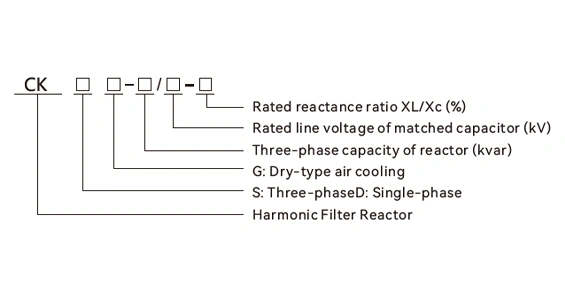

Order specifications

Please choose suitable reactors according to the reactive power compensation solution.
Pay more attention to the following parameters: rated voltage, rated capacity, three-phase or single phase, matched capacitor technical parameters...

Technical Parameter

Harmonic filter electric reactor, according to EN61558, VDE0532,EN60289, GB/T10229
Harmonic	V3 =0.5% VR Load power factor=100% V5 = 6.0% VR Load power factor=100% V7 = 5.0% VR Load power factor=100% V11 = 3.5% VR Load power factor=100% V13 = 3.0% VR Load power factor=100%
Virtual Current	Irms=√I₁²+I₃²+...+Iₙ²)
Fundamental Current	I1=1.06 IR
TEMP Protection	Miniswitch, normal close connect position.
Frequency	50Hz or 60Hz
Voltage	400, 440, 480, 525V
Output Power	5~100kvar
Tuning Coefficient	7%, 14%
Cooling Mode	Natural cooling
Working TEMP	40℃
Protection Degree	Ⅰ
Sealed Package	IP00
	*Subject to actual supply of goods.

Three-Phase Electric Reactor(System voltage 400V, reactance 7%)

MODEL	REACTANCE	TUNING FREQUENCY	INDUCTANCE	MATCHED CAPACITOR
CKSG-1.05/0.48-7	7%	189Hz	3.4225 mH	15kvar 480V/50Hz
CKSG-1.4/0.48-7	7%	189Hz	2.5669 mH	20kvar 480V/50Hz
CKSG-1.75/0.48-7	7%	189Hz	2.0535 mH	25kvar 480V/50Hz
CKSG-2.1/0.48-7	7%	189Hz	1.7112 mH	30kvar 480V/50Hz
CKSG-2.8/0.48-7	7%	189Hz	1.2834 mH	40kvar 480V/50Hz
CKSG-3.5/0.48-7	7%	189Hz	1.0267 mH	50kvar 480V/50Hz
CKSG-4.2/0.48-7	7%	189Hz	0.8556 mH	60kvar 480V/50Hz
*Reactance rate 7%, resist 5th order and more than 5th order harmonics.

Three-Phase Electric Reactor(System voltage 400V, reactance 14%)

MODEL	REACTANCE	TUNING FREQUENCY	INDUCTANCE	MATCHED CAPACITOR
CKSG-2.1/0.525-14	14%	134Hz	8.1885 mH	15kvar 525V/50Hz
CKSG-2.8/0.525-14	14%	134Hz	6.1414 mH	20kvar 525V/50Hz
CKSG-3.5/0.525-14	14%	134Hz	4.9131 mH	25kvar 525V/50Hz
CKSG-4.2/0.525-14	14%	134Hz	4.0943 mH	30kvar 525V/50Hz
CKSG-5.6/0.525-14	14%	134Hz	3.0707 mH	40kvar 525V/50Hz
CKSG-7.0/0.525-14	14%	134Hz	2.4566 mH	50kvar 525V/50Hz
CKSG-8.4/0.525-14	14%	134Hz	2.0471 mH	60kvar 525V/50Hz
*Reactance rate 14%, resist 3rd order and more than 3rd order harmonics.

Single-Phase Electric Reactor(System voltage 400/√3 V)

MODEL	REACTANCE	TUNING FREQUENCY	INDUCTANCE	MATCHED CAPACITOR
CKDG-0.35/0.25-7	7%	189Hz	3.4938 mH	5kvar 280V/50Hz
CKDG-0.7/0.25-7	7%	189Hz	1.7469 mH	10kvar 280V/50Hz
CKDG-1.05/0.25-7	7%	189Hz	1.1646 mH	15kvar 280V/50Hz
CKDG-1.4/0.25-7	7%	189Hz	0.8734 mH	20kvar 280V/50Hz
CKDG-0.7/0.3-14	14%	134Hz	4.0107 mH	5kvar 300V/50Hz
CKDG-1.4/0.3-14	14%	134Hz	2.0054 mH	10kvar 300V/50Hz
CKDG-2.1/0.3-14	14%	134Hz	1.3369 mH	15kvar 300V/50Hz
CKDG-2.8/0.3-14	14%	134Hz	1.0027 mH	20kvar 300V/50Hz
*According to harmonics situation, select suitable reactance rate electric reactor.
