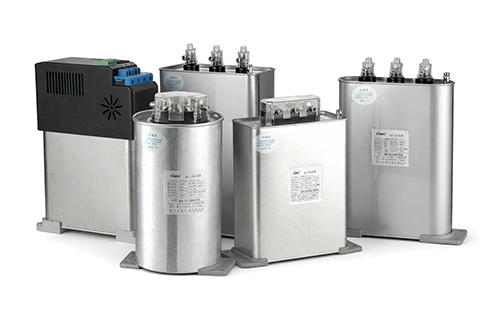

Product Features

ELECTRIC: Service life(≥180,000 hours); Withstand high surge current (300IR); Non-corona discharge.
MACHINERY&MAINTAINING: Installation cost low; Easily installat & Connection; Low weight; No maintaining
SAFETY: Self-healing; High protective terminal; Proven technology; Discharge resistance.
ENVIRONMENT: Dry-type design; No oil leakage

Order Specification

Please choose suitable capacitors according to the reactive power compensation solution.
Pay more attention to the following parameters: rated voltage, rated capacity, three-phase or single-phase...

Technical Parameter

Over-Voltage	Vmax	Ue+10% Can last up to 8 hours every day.
		Ue+15% Can last up to 30 minutes every day.
		Ue+20% Can last up to 5 minutes every day.
		Ue+30% Can last up to 1 minute every day.
Over-Current	Imax	1.8 le
Surge Current	IS	300 le
Loss
Dielectric		< 0.2 W/kvar Total< 0.45 W/kvar
Rated Frequency	F	50/60 Hz
Capacity Deviation		-5%/+10%
Withstand Volt(Terminals)		2.15 VR1,AC, 10s
Withstand Volt(Terminal&Case)	VTT	Ue≤660V, 3000VAC, 10s; Ue>660V, 6000VAC,10s
Average Service Life	VTC	Up to 180,000h(TEMP degree-40/C); Up to 130,000h(TEMP degree-40/D)
Environment Temperature		-40/D, max TEMP 55℃; max daily average TEMP 45℃; max annual TEMP 35℃; min -40℃
Cooling		Natural cooling & Fan cooling
Humidity		≤95%
Altitude		≤2000 meters
Installation&Grounding		Bolted
Safety		Dry-type Technology, self-healing, max fault current 10,000A, satisfies UL810
Dielectric Material		Built-in discharge resistance
Discharge module		Polypropylene Film
Protective Case		Stamping aluminum cans
Sealed Package		IP20, indoor; equipping with a special case can be used outdoors
		*Subject to actual supply of goods.

Three-Phase Capacitor(Rated Voltage 480V AC 50Hz)

MODEL	Rated Voltage	Rated Capacity	Rated Current	Rated Capacitance
YD-R480S05	480 V	5kvar	6.0A	3×23.0 μF
YD-R480S10	480 V	10kvar	12.0A	3×46.1 μF
YD-R480S15	480 V	15kvar	18.0A	3×69.1 μF
YD-R480S20	480 V	20kvar	24.1A	3×92.1 μF
YD-R480S25	480 V	25kvar	30.1A	3×115.1 μF
YD-R480S30	480 V	30kvar	36.1A	3×138.2 μF
YD-R480S40	480 V	40kvar	48.1A	3×184.2 μF
*Can work with 7% electric reactor.

Three-Phase Capacitor(Rated Voltage 525V AC 50Hz)

MODEL	Rated Voltage	Rated Capacity	Rated Current	Rated Capacitance
YD-R525S05	525 V	5kvar	5.5 A	3×19.2 μF
YD-R525S10	525 V	10kvar	11.0 A	3×38.5 μF
YD-R525S15	525 V	15kvar	16.5 A	3×57.7 μF
YD-R525S20	525 V	20kvar	22.0 A	3×77.0 μF
YD-R525S25	525 V	25kvar	27.5 A	3×96.2 μF
YD-R525S30	525 V	30kvar	33.0 A	3×115.5 μF
YD-R525S40	525 V	40kvar	44.0 A	3×154.0 μF
*Can work with 14% electric reactor.

Single-Phase Capacitor(Rated Voltage 280V AC 50Hz)

MODEL	Rated Voltage	Rated Capacity	Rated Current	Rated Capacitance
YD-R280F05	280 V	5kvar	17.9A	203 μF
YD-R280F10	280 V	10kvar	35.7A	406 μF
YD-R280F15	280 V	15kvar	53.6A	609 μF
YD-R280F20	280 V	20kvar	71.4A	812 μF
*Can work with 7% electric reactor.

Single-Phase Capacitor(Rated Voltage 300V AC 50Hz)

MODEL	Rated Voltage	Rated Capacity	Rated Current	Rated Capacitance
YD-R300F05	300 V	5kvar	16.7A	177 μF
YD-R300F10	300 V	10kvar	33.3A	354 μF
YD-R300F15	300 V	15kvar	50.0A	531 μF
YD-R300F20	300 V	20kvar	66.7A	707 μF
*Can work with 14% electric reactor.
