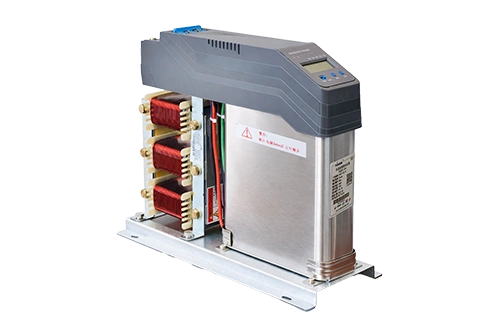

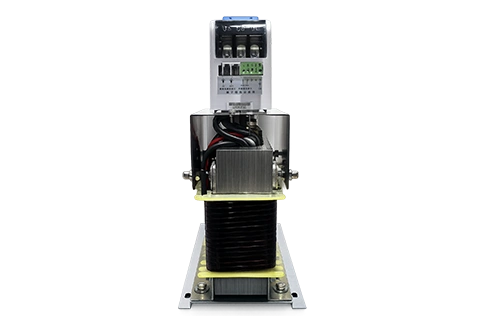

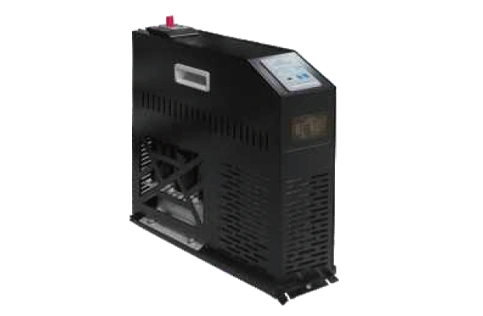

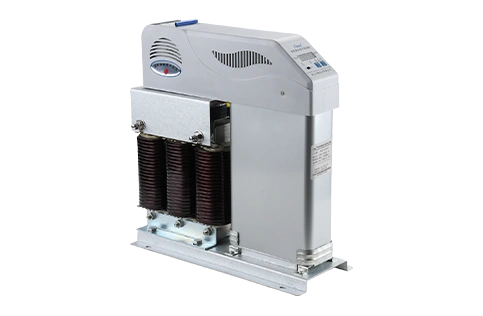

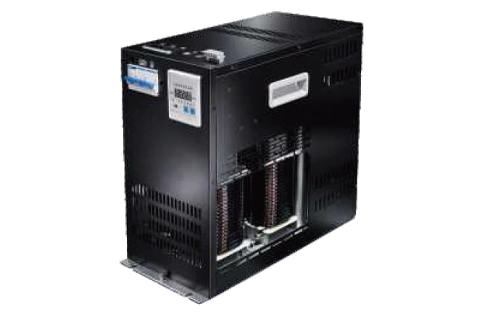

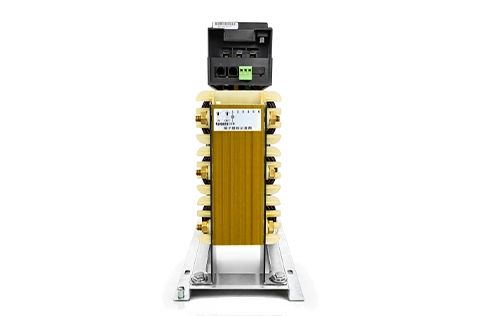

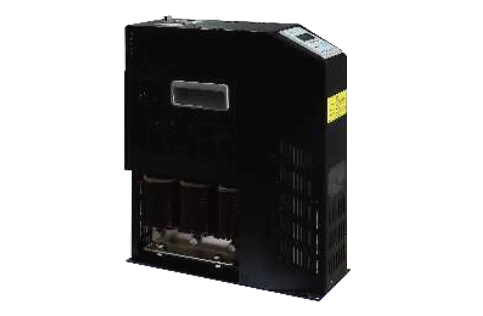

Anti-harmonic Intelligent Power Capacitor

Anti-Harmonic Intelligent Power Capacitor

With automatic zero-crossing switching, intelligent control, and fault protection, it offers compact size, low power consumption, and convenient installation and maintenance.

Get in touch→

Core Configuration: Built upon the basic model, it incorporates a reactor with a specific reactance rate (e.g., 7% or 14%) connected in series.
Application Environment: Environments subject to harmonic pollution caused by non-linear loads (such as variable frequency drives, LEDs, and computers).
Key Benefits: Suppresses harmonic amplification, protects capacitors from burnout, and filters out harmonics at specific frequencies.

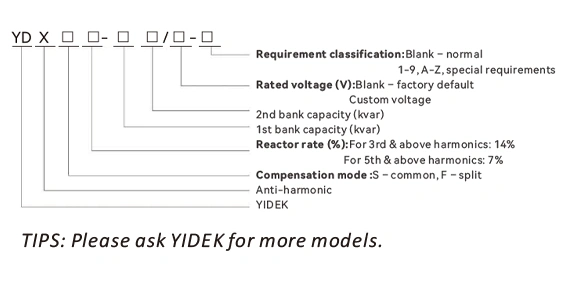

Basic Specs

Compensation mode	Common (S), split (F), mixed
Capacity series	5kvar, 10kvar, 15kvar, 20kvar, 30kvar, 40kvar, 50kvar
Rated voltage	Standard 480V for 0.4kV grid
Reactor rate	7%, 14%
Application scenario	7%: for 5th & above harmonic environment 14%: for 3rd & above harmonic environment

Electrical Parameters

Input voltage	AC380V±20%
Frequency	50Hz±2.5Hz
Operating temp.	-25℃～+55℃
Relative humidity	≤50% at +40℃; moderate condensation allowed at low temp.
Altitude	≤2000m
Standard	GB/T 15576

Core Hardware

Components	Control unit, zero-crossing switch, protection unit, tuning reactor, low-voltage filter capacitor
Switching	Zero-crossing
Control mode	Auto/manual
Monitoring	Device temp., switching status, communication status, fault/alarm
Hardware version	V3.0 anti-harmonic dedicated

Wiring Specs

Primary wiring	10mm² stranded copper wire
Primary wiring	16mm² stranded copper wire
Control circuit	Voltage: 1.5mm² stranded copper Current: 2.5mm² stranded copper
Grounding	2.5mm² copper wire
Communication	Dedicated plug-in data cable (provided)

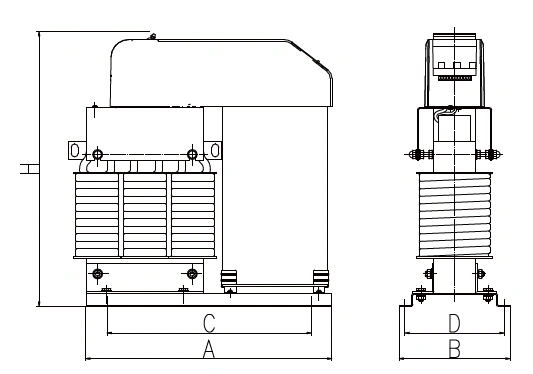

Outline Dimension

Dimensions of Anti-harmonic Capacitor with 14% Reactor Rate (mm)

Spec

5kvar

10kvar

15kvar

20kvar

30kvar

40kvar

50kvar

Common

Split

Common

Split

Common

Split

Common

Split

Common

Split

Common

Split

Common

Split

Overall

370

420

470

390

420

160

190

Mounting

310

350

140

170

Dimensions of Anti-harmonic Capacitor with 14% Reactor Rate (mm)

Spec

5kvar

10kvar

15kvar

20kvar

30kvar

40kvar

50kvar

Common

Split

Common

Split

Common

Split

Common

Split

Common

Split

Common

Split

Common

Split

Overall

370

420

470

390

420

445

160

190

Mounting

310

350

140

170

Related Resources	Download
YIDEK product brochure	Download
Yide Phase Separation Intelligent Integrated Harmonic Suppression Power Capacitor Software V1.0	Download
Yide Three-phase Intelligent Integrated Harmonic Suppression Power Capacitor Software V1.0	Download
Utility Model Patent	Download
CQC - YDXF	Download
CQC - YDXS	Download
CQC report - YDXF	Download
CQC report - YDXS	Download
