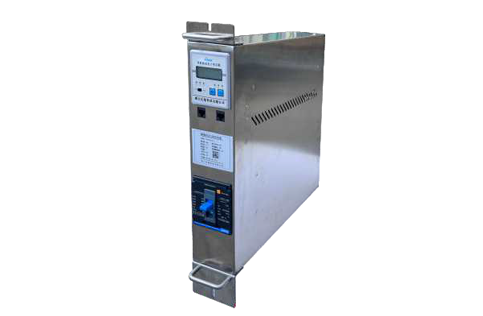

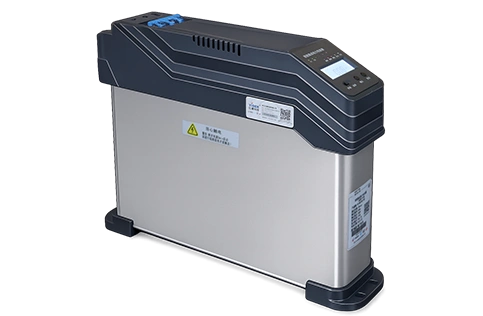

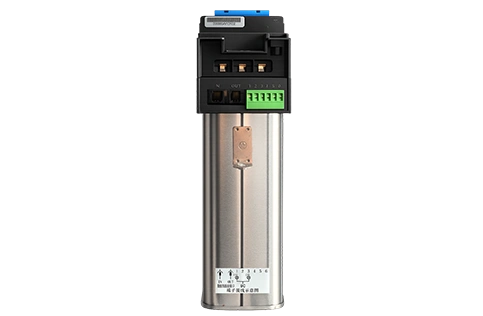

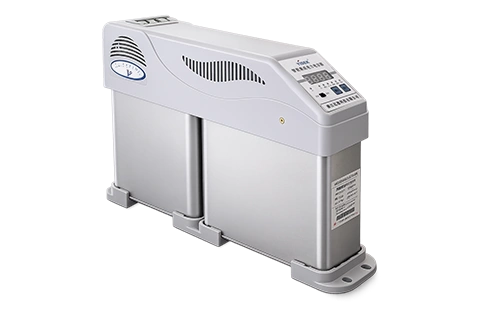

Intelligent Power Capacitor

An integrated reactive power compensation module combining power capacitors, zero-crossing switching, intelligent control, monitoring and multi-level protection for automatic power factor correction systems.

Get in touch→

MODULAR: Compact structure, Easy wiring, Convenient Maintenance, Individually or in Parallel use, easy extend total capacity
HIGH QUALITY: Self-Healing type low-voltage power capacitor
SWITCH MODULE: Intelligent capacitor built-in on/off switch, Zero-off technology, No surge, No over-voltage, Quick response time.
PROTECT DESIGN: Power-off protection, Short circuit protection, Phase-lack protection, Over-TEMP protection, THDu protection, Over-volt protection, Under-volt protection, Under-cur protection, Ensure stable and safe operation of the capacitor.
H&M INTERFACE: Display operating parameters. Display the situation of the capacitor, switch, and communication. Convenient for selecting different working modes.

Capacitor Components:

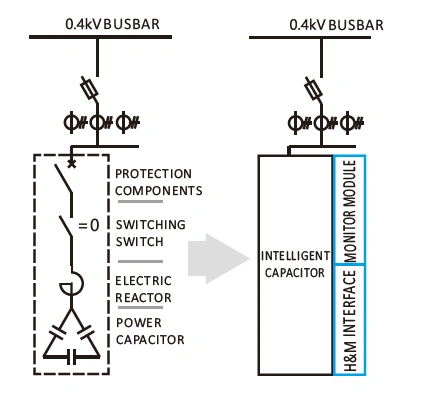

The capacitor adopts an integrated design, consisting of the following parts:
*Power Capacitor
*Reactor
*On/Off Switch
*Protection Components
*Monitor Module
*Human-Machine Interface

Product Application:

*Integrated reactive compensation of the distribution system
*Local power factor correction of motors
*Save the energy system
*Construction, traffic, factory, government, medical, and other industries

Order Specification

Compensation Mode	Capacity (kvar)	Rated Voltage (V)	Capacitor Combination (kvar)	Height H (mm)
Three-phase common compensation	50	450	25+25	320
	40	450	20+20	280
	30	450	20+10	280
	20	450	10+10	240
	15	450	10+5	195
Split-phase compensation	30	250		280
	20	250		240
	10	250		195
Dual split-phase compensation	30	250	20+10	280
	20	250	10+10	240
	10	250	5+5	195
TIPS: Please ask YIDEK for more models.

Specification

3-phase common	Capacity: 50/40/30/20/15 kvar; Combination: 25+25, 20+20, 20+10, 10+10, 10+5
Split-phase	Capacity: 30/20/10 kvar; Rated voltage AC 250V
Dual split-phase	Capacity: 30/20/10 kvar; Combination: 20+10, 10+10, 5+5

Power Supply Conditions

Rated voltage	Common: AC450V; Split/dual: AC250V
Input range	AC380V±20%
Frequency	50Hz±2.5Hz

Core Functions & Protection

Altitude	≤2000m
Rel. humidity	≤50% at +40℃; Condensation allowed at low temp.
Composition	Control unit, zero-crossing switch, protection unit, capacitor
Zero-crossing	Reduces inrush current, extends switch life

Networking &Control Parameters

Protection	Overvoltage, undervoltage, overtemperature, undercurrent; harmonic (reserved)
Comm. address	Split: 1-25; Common: 26-63
Max units	≤20 units
Delay	ON: 2-250S (default 15S); OFF: 2-250S (default 30S)

Environment & Applicable Standards

PF threshold	ON: 0.80-0.96 (default 0.95) OFF: 0.80-0.99 (default 0.99)
Temp. range	-25℃～+55℃
Temp. protection	20℃~80℃ adjustable (default 65℃)

HMI & Commissioning

Standard	GB/T 15576
Mode	Manual / Auto / Simulate
Indicators	Switching, communication, fault, alarm, master/slave status
Config	Voltage, temp., threshold, etc.; saved after power-off

Related Resources	Download
YIDEK product brochure	Download
Yide Fenbu Capacitor Software V1.0 Change	Download
Yide Joint Capacitor Software V1.0 Change	Download
Yide Intelligent Single Integrated Power Capacitor Embedded Software V1.0	Download
Utility Model Patent	Download
Invention Patent – Integrated Power Capacitor	Download
CQC YD-8CF	Download
CQC YD-8CS	Download
CQC YD-868RF	Download
CQC YD-868RS	Download
CQC Report YD-8CF	Download
CQC Report YD-8CS	Download
CQC Report YD-868RF	Download
CQC Report YD-868RS	Download

Connect with Our Experts

Have questions about our products or need assistance with a project? Our team is ready to help you find the perfect electrical solution.
